Compact Stabilised Solid State Lasers

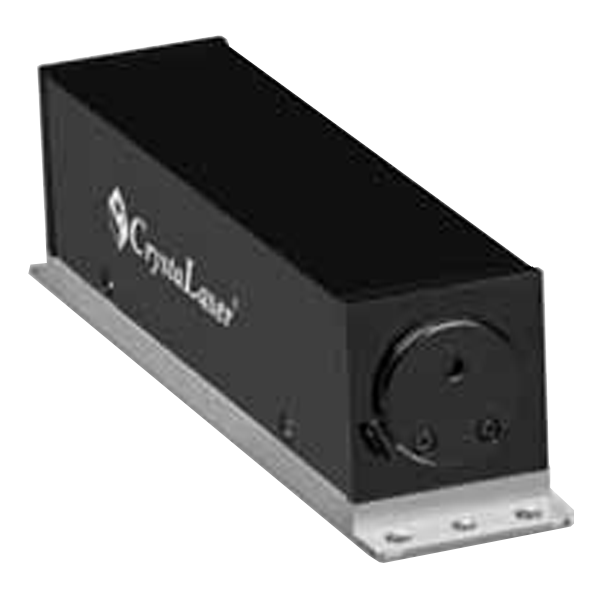

DL Series

Add to Quote
Ask the Expert

Compact stabilised solid state lasers from CrystaLaser.

The most reliable Solid-State technology available, all in an ultra-compact footprint. The Direct Series lasers cover a variety of wavelengths suitable for laboratory research as well as OEM applications. The OEM option integrates the control electronics within the laser head, further reducing size.

Features:

  • Wavelength 375 nm to 1550 nm, power up to 1 W
  • Low noise and SLM
  • Excellent pointing stability and power stability
  • Ultra compact OEM package
  • High speed modulation up to 200 MHz
  • Free space and fibre delivery system



Applications:

  • Holographics
  • Flow cytometry
  • Fluorescence
  • Microscopy
  • Confocal microscopy
  • Raman Spectroscopy



Contact us for other wavelengths and output powers.
CW Violet-Blue Lasers
Wavelengths (+/- 5 nm)375 nm, 405 nm, 445 nm
Laser versionSLM versionLow noise versionMultimode version
375 nm output power (mW)15, 10 , 516, 10, 530
405 nm output power (mW)40, 30, 20, 10100, 50, 25, 101000, 300
445 nm output power (mW)30, 20, 1040, 30, 101000, 400
Beam diameter (1/e2)1.2 mm1.2 mm1.2:2.5 mm
Beam divergence, full angle0.6 mrad0.6 mrad0.7:1.2 mrad
Transverse modeCircular, M2 ~1.2Circular, M2 <1.2Multi-mode, M2 <3
Output noise, rms< 1% (10 Hz – 50 MHz)< 0.5% (10 Hz – 50 MHz)< 1% (10 Hz – 50 MHz)
Longitudinal modeSingleMultipleMultiple
Linewidth< 10–⁵nm0.8 nm1 nm, nominal
Coherence length>50 m——
Power stability, rms1% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability< 0.02 mrad at constant temperature
PolarisationLinear; Ratio 100:1, Vertical
CW Blue Lasers
Wavelengths473 nm, 488 nm
Laser versionSLM versionLow noise versionBasic version (Part of Crystal Series – DPSS)
473 nm output power (mW)10, 515, 10, 5150, 100, 75, 50, 25, 10
488 nm output power (mW)10, 520, 15, 10, 5—
Beam diameter (1/e2)1.2 mm1.2 mm0.7 mm
Beam divergence, full angle0.7 mrad0.7 mrad1 mrad
Transverse modeCircular, M2 ~1.2Circular, M2 ~ 1.2TEM₀₀, M2 < 1.2
Output noise, rms< 1% (10 Hz – 50 MHz)< 1% (10 Hz – 50 MHz)2% (0 – 10 kHz), ~30% at 300 kHz
Longitudinal modeSingle——
Linewidth< 10–⁵nm0.8 nm1 nm, nominal
Coherence length> 100 m——
Power stability, rms< 2% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability< 0.02 mrad at constant temperature
PolarisationLinear; Ratio 100:1, Vertical; > 300:1 option available
CW Red and Infrared Lasers
Wavelengths (+/-3 nm)6386426556586907858088308529149801550
Low noise version, max. power (mW)301007010050120120100120200500500
SLM version, max. power (mW)2530503012012012010010080
Transverse modeCircular beam, M2 < 1.2
Beam diameter (1/e2)1 mm, nominal
Beam divergence, full angle1 mrad, nominal
Output noise rms< 0.5% (10 Hz – 20 MHz)
LinewidthSLM version:< 10-4nm

; Low noise version: 1nm

Coherence lengthSLM version: >5 m; >100 m option available; Low noise version: Not specified
Power stability, rms< 2% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability< 0.01 mrad at constant temperature
PolarisationLinear; Ratio >100:1, >300:1 option available
