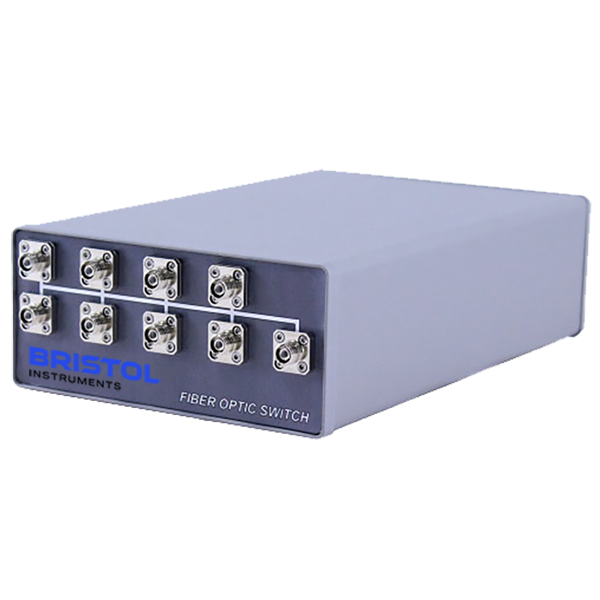

Fibre Optic Switch

Add to Quote
Ask the Expert

The FOS Series fibre optic switch provides a convenient way to connect up to eight lasers to a single fibre-coupled instrument, such as the wavelength meters and spectrum analysers also provided by Bristol Instruments. It allows a single wavelength meter or spectrum analyser to characterise multiple lasers automatically. Complex experiments and multiple users can be easily accommodated.

The FOS is a self-contained microelectromechanical (MEMS) switch that operates from 400 to 1700 nm (VIS) or from 1000 to 2600 nm (NIR2). The switch is USB powered and controlled using a simple and intuitive PC application. Switching can be done manually, with the user selecting an appropriate channel,  or automatically by cycling through user specified channels.

SpecificationsVISNIR2
Switch Type1×4 or 1×8
Wavelength Range400 – 1700 nm1000 – 2600 nm
Internal Fibre Type9 µm core diameter (singlemode over 1260 – 1625 nm)7 µm core diameter (singlemode over 1850 – 2200 nm)
Connector TypeFC/UPC or FC/APC
Transmission [1],[2]10 – 30% (400 – 600 nm)
30 – 40% (600 – 1700 nm)		20 – 40% (1000 – 1600 nm)
10 – 20% (1600 – 2600 nm)
Repeatability [2]≥ 0.01 dB
Polarisation Dependent Loss [2]≥ 0.1 dB
Return Loss [2]≥ 40 dB
Crosstalk [2]≤ -50 dB
Switching Time≤ 5 ms
Switching Frequency≤ 30 Hz
LifetimeEarlier of 108 cycles or two years
Maximum Input Power0.05 mW (400 – 500 nm)
10 mW (500 – 600 nm)
100 mW (600 – 1700 nm)		100 mW (1000 – 2600 nm)
Dimensions (H x W x D)64 x 140 x 229 mm
Weight1.1 kg
PowerUSB 2.0 / 500 mA
Instrument InterfaceWindows-based application via USB 2.0 or greater
[1] Achieved using an optical input fibre with a core diameter that matches the FOS internal fibre.
[2] Characteristic performance, but non-warranted.
