High power benchtop fibre lasers

THPFL

Description
Specifications

High power benchtop fibre lasers.

Application

Test & measurement
Industrial

Features

High output power, up to 40 W
User friendly table top
Stable output power
Modulation frequency up to 8 kHz (THPFL-1)

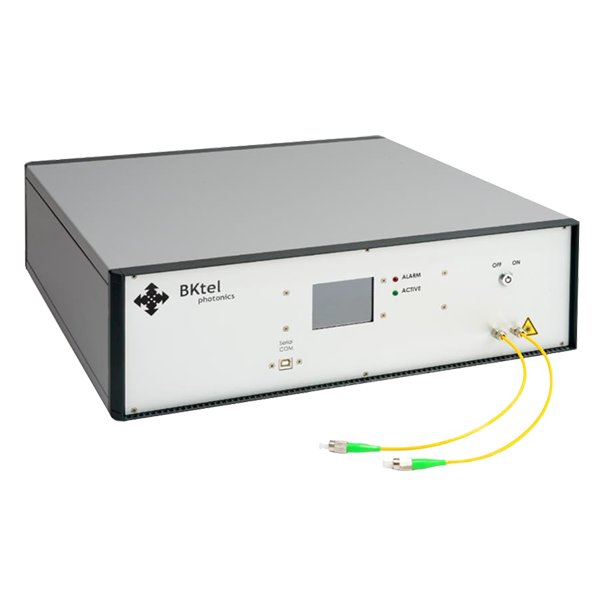

THPFL-1

Model	THPFL-1430	THPFL-1448	THPFL-1460
Wavelength	1060 - 1080 nm
Output Power	20 W	30 W	40 W
Output Power Tunability	10 – 100 %
Mode of Operation	CW
Laser Output	Gaussian
Polarisation	Random / Linear
Output Power Stability	2 %
Signal Linewidth	<1 nm
Power Supply Voltage	AC 100-240 V
Operating Temperature	15 – 30 °C
Optical Connector	Collimator
Beam Diameter 1/e²	5.0 mm
Beam Quality, M²	1.1
Optical Fibre Type	3 mm armoured cable
Dimensions	3U
Communication Interface	RS-232 via USB / TTL(analogue)

THPFL-1.5

Wavelength	1550 nm, 1567 nm, other
Output Power	Up to 20 W
Output Power Tunability	10 – 100 %
Mode of Operation	CW / Modulated
Laser Output	Gaussian
Polarisation	Random / Linear
Output Power Stability	2 %
Signal Linewidth	<1 nm
Power Supply Voltage	100 – 240 VAC
Operating Temperature	15 – 35 °C
Optical Connector	FC/APC, Collimator, other
Beam Diameter 1/e² (collimator)	3.0 / 5.0 mm
Beam Quality, M²	typ 1.1
Optical Fibre type	3 mm armoured cable, 1.8 m
Dimensions	3U 19"
Communication Interface	RS-232 via US

THFL-2

Wavelength	1750 – 2050 nm
Output Power	Up to 40 W
Output Power Tunability	10 – 100 %
Mode of Operation	CW
Laser Output	Gaussian
Polarisation	Random / Linear
Output Monitoring	Optional
Output Power Stability	2 %
Signal Linewidth	<1 nm
Power Supply Voltage	100 – 240 VAC
Operating Temperature	15 – 35 °C
Optical Connector	Collimator, FC/APC, others
Beam Diameter 1/e²	3.5 / 5.0 mm
Beam Quality, M²	typ 1.1
Optical Fibre Type	3 mm armoured cable, 1.8 m
Dimensions	3U 19"
Communication Interface	RS-232 via USB
