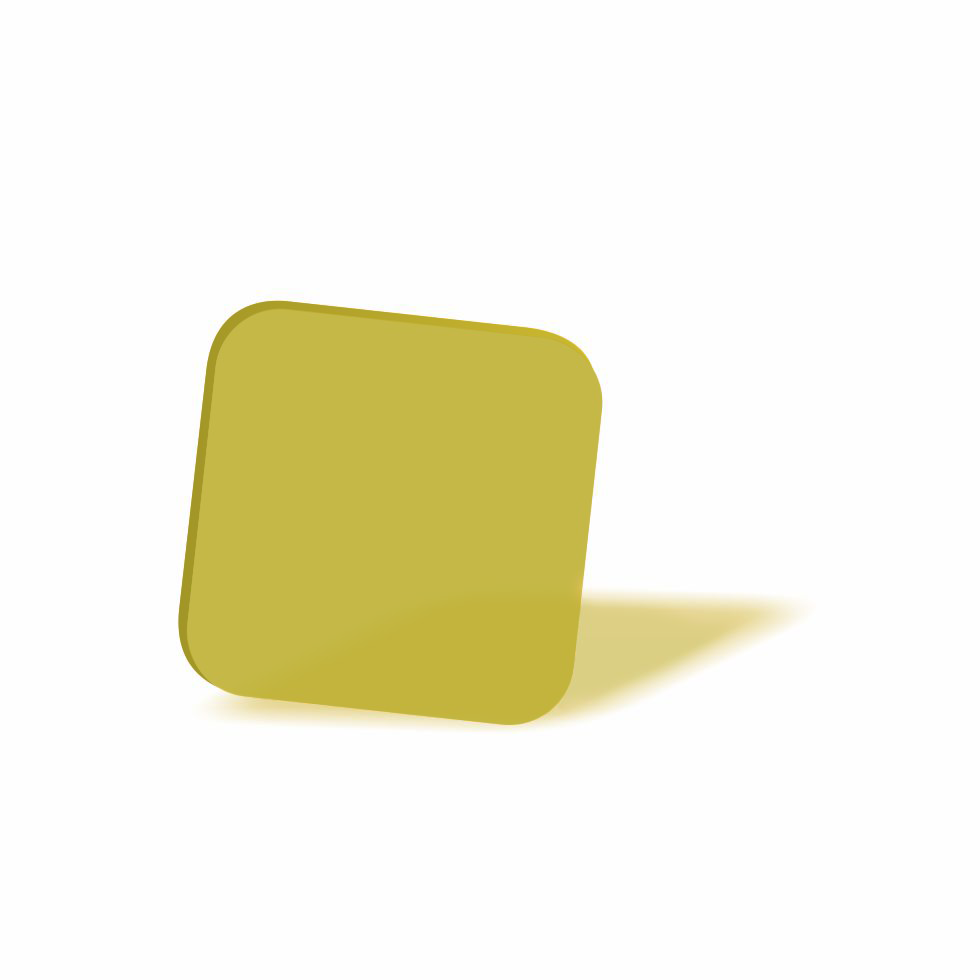

The laservision plastic laser safety window P1L23 (with a thickness of approx. 3mm) is a light green laser safety window. It is certified according to EN 60825-4. Due to the wide protection range in the near infrared and high optical densities (OD5+ from 855nm to 1090nm, as well as >1065-1075 OD7+), the window is suitable for high power diodes as well as for disk, Nd:YAG or fiber lasers. The light green laser safety window measures 297 x 210 mm and has a good color vision and daylight transmission (VLT) of approx. 50%. The maximum size is 3000 x 2000mm² and can be manufactured to customer specifications.
The laser safety window type P1L23 is made of a light green, absorbent plastic on a particularly laser-resistant PMMA basis. The laser protection is based on absorption of the laser radiation in the material itself. The laser safety window has a daylight transmission of approx. 50% and has good visual brightness and color visibility. To ensure safe use in machines or shielding, even with large beam diameters, the P1L23 laser safety window is certified in accordance with DIN EN 60825-4 and CE. It is available in various standard sizes.
Customized designs are also possible. There is broad and high protection in the NIR range from 855nm-1090nm (OD5+). The laser safety window type P1L23 is ideal for high power diodes as well as for disk, Nd:YAG or fiber lasers.
