LaserSource Cables
- 2 m length
- 3, 4 (8), 20, and 40 Amp
- Connector or pigtailed

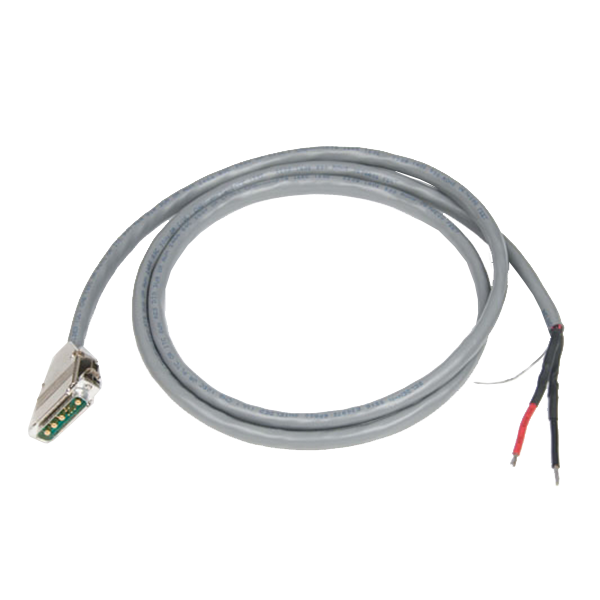

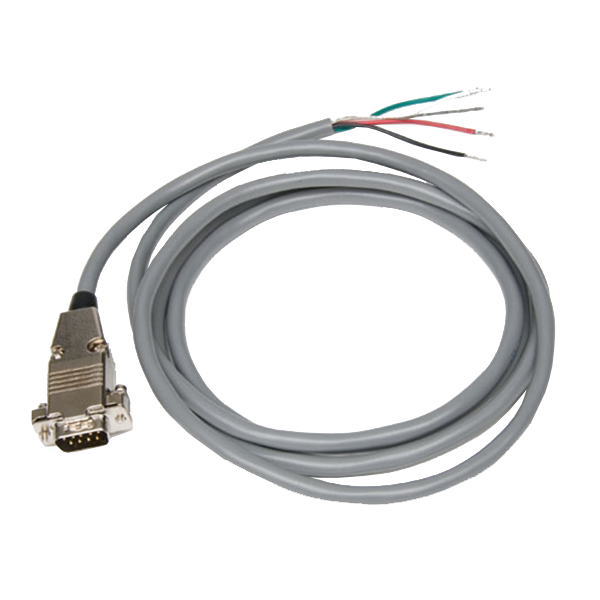

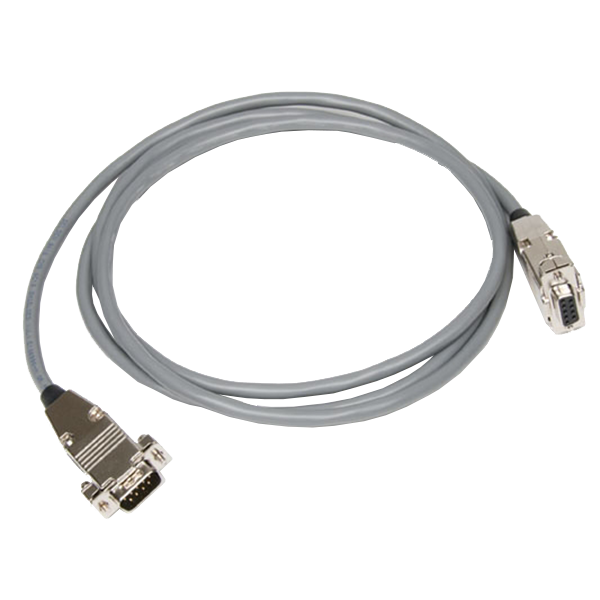

Arroyo’s LaserSource cables are made from quality wire and feature solid metal housings for excellent electrical contact and long service life. All cables have a standard DB-9 male or 9W4 male connector on the instrument end and either a corresponding female connector or bare wires (pigtailed) on the fixture end.
The 1220B/1221B cables are good for applications up to 4A (8A with 4300 Series). They also feature twisted pair cable for good modulation performance.

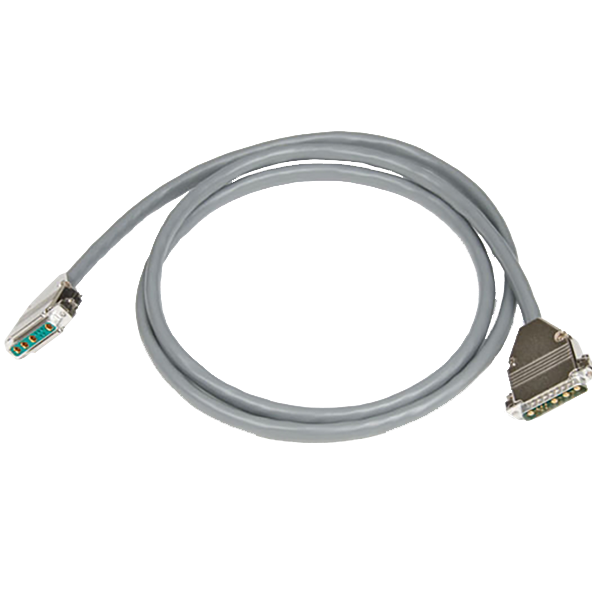

For applications above 8A, the 1228-20/1229-20 LaserSource Cables feature heavier gauge wire suitable for 20A operation. Note that these cables only carry the LD+ and LD- signals. The remote voltage sense, photodiode, and interlock signals are carried on the signal/interlock connector. Use the 1228-S/1229-S cables to connect your photodiode or remote voltage sense signals.
