Our Liquid Crystal Polarization Rotator continuously rotates the polarization direction of a monochromatic, linearly polarized input beam.
With three types of rotators based on parallel aligned nematic, twisted nematic and ferroelectric liquid crystals each providing different features in terms of contrast, speed, achromacity.
LPR Series

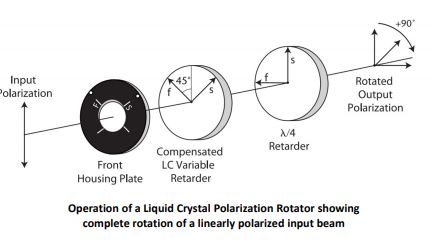

Our Liquid Crystal Polarization Rotator (LPR) continuously rotates the polarization orientation of a monochromatic, linearly polarized input beam. Our LPR consists of a compensated Liquid Crystal Variable Retarder combined with a zero‐order polymer quarter‐wave retarder. The fast axis of the liquid crystal variable retarder is oriented at 45° to the slow axis of the quarter‐ wave retarder and the linearly polarized input must be parallel to the quarter‐wave retarder slow axis. Polarization rotation is achieved by electrically controlling the retardance of the Liquid Crystal Variable Retarder,
eliminating any mechanical motion.
FPA Series
Meadowlark Optics’ Achromatic Ferroelectric Polarization Rotator features high speed and exceptional polarization purity over broad wavelength ranges. FLC devices offer a significant performance advantage in optical shutter and rotator applications demanding the fastest optical response times available.
Works with FC-010 controller only
LTN Series
Binary liquid crystal optical rotator is a two‐state device used to rapidly switch between two orthogonal sites of linear polarization. One state has output linear polarization parallel to an input linear polarization state. This occurs when voltage is applied to the rotator. The other state has output polarization orthogonal to the input polarization and occurs when no voltage is applied.
