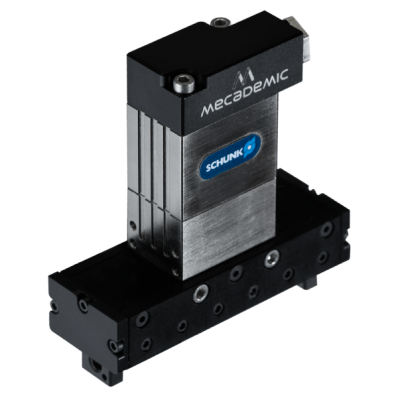

MEGP 25LS electric parallel gripper

MEGP 25LS

The MEGP 25LS is a high-precision electric parallel gripper with a 24 mm stroke per jaw and 40 N gripping force, offering position-controlled finger movement for handling larger or variably sized parts.

Technical Specifications for MEGP 25LS Gripper:
CharacteristicValue
Maximum weight per finger0.02 kg
Maximum gripping force40 N
Recommended maximum workpiece weight0.2 kg
Stroke per jaw24 mm
Repeatability0.03 mm
IP protection class30
Power supply (nominal)24 V, 0.14 A
Noise emission< 70 dB
HousingCoated aluminum alloy, steel
Total weight0.136 kg
Operating temperature5° to 55°C
Operating humidity10% to 95% RH (non-condensing)
