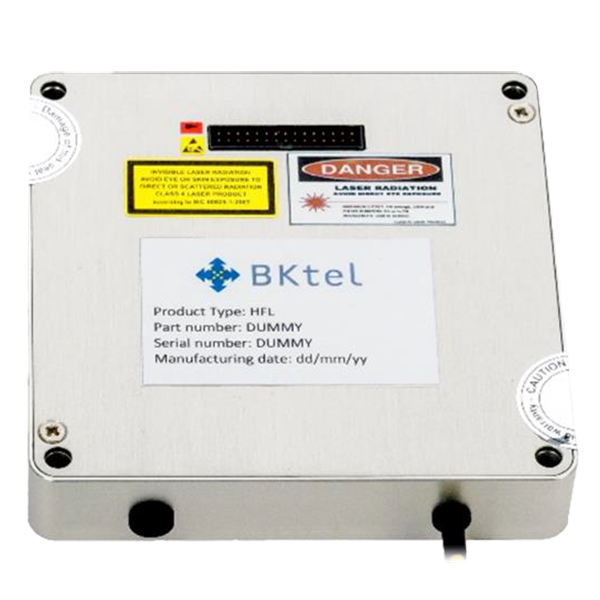

Pulsed laser at 1 µm or 1.5 µm band

HFL

Add to Quote
Ask the Expert

Pulsed laser at 1 µm or 1.5 µm band



Applications

  • Distance measurement
  • LIDAR / 3D scanning
  • Test & measurement

Features

  • High output power
  • Compact package
  • Low power consumption



ModelHFLHFL-1
Center Wavelength1540 – 1560 nm1030 / 1053 / 1064 – 1100 nm
Wavelength Drift0.1 nm/°C
Laser Peak powerUp to 5 kWUp to 25 W
Laser Output Power, averageUp to 4 WUp to 5 W
Pulse Width0.4 – 50 ns0.4 – 10 ns
Pulse Energy50 μJUp to 150 μJ
Repetition rate10 – 2000 kHz10 – 500 kHz
Pulse TimingExternal trigger, TTL
PolarisationRandom / Linear
Mechanical Dimensions110 x 110 x 20 mm
Operating Case Temperature-5 – +65 °C
Output Fibre length30 cm
Output TerminationSC/APC, FC/APC, Collimator
Power Supply Voltage+5 / +12 VDC+12 / +24 VDC
Power Consumption150 W<50 W
Communication InterfaceRS-232
