Laser 2000

T1K04

T1K04

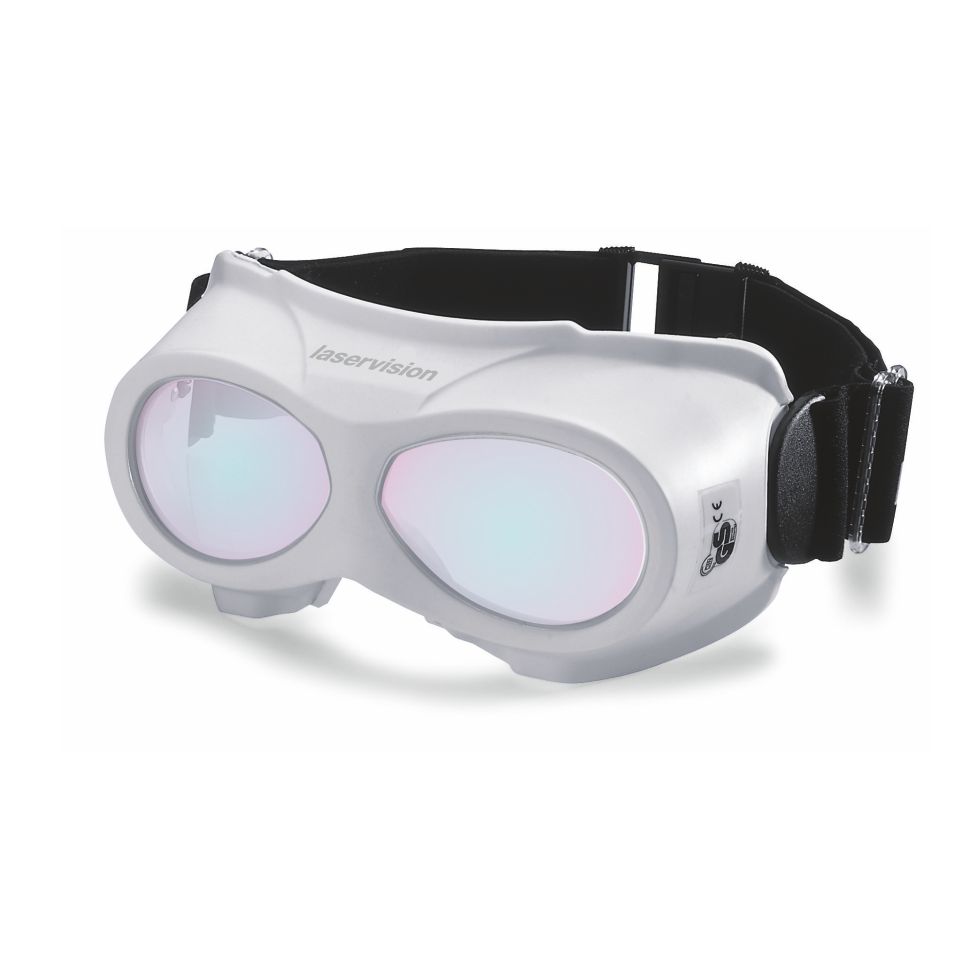

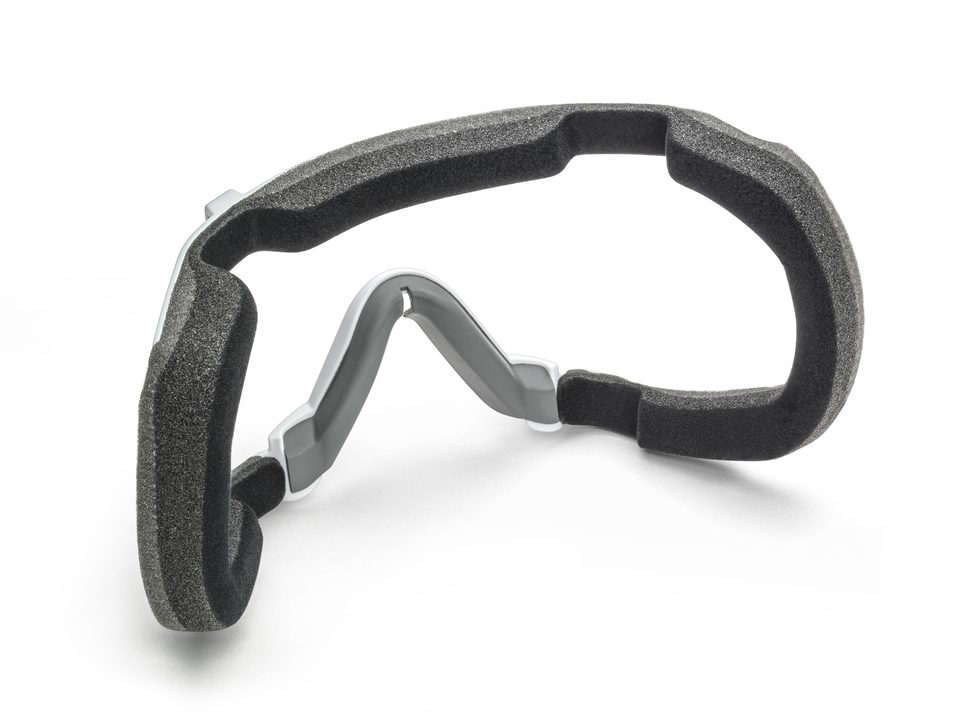

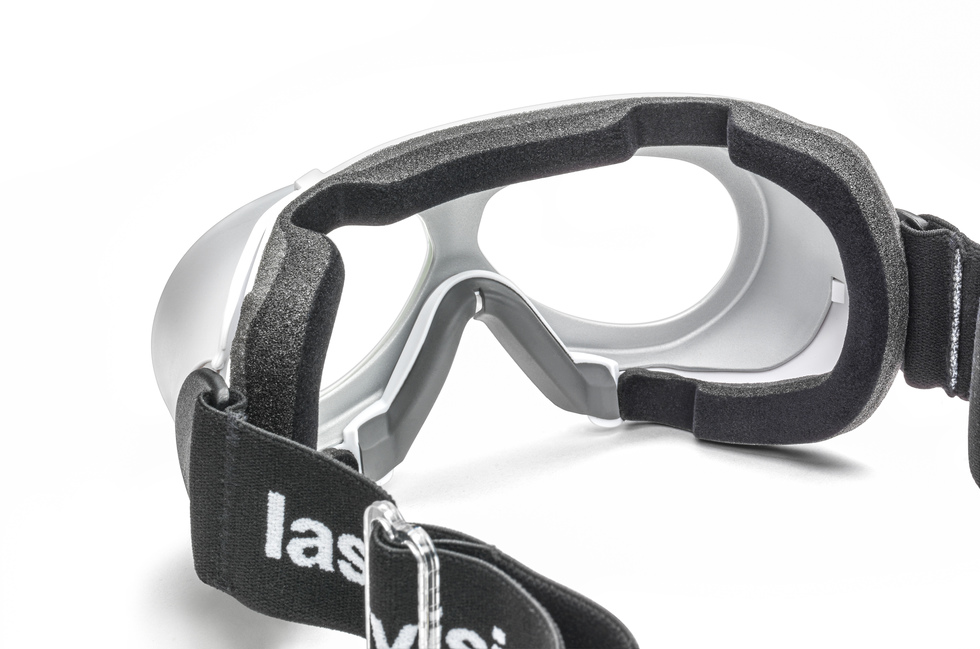

The laservision laser safety goggle R14.T1K04.1004 with an aired foam frame (A), provides high protection ratings for Nd:YAG-, IR-fiber-, disc- and CO2-lasers within the NIR and IR spectral area (1,030-1,100nm; 5,400 and 9,000-11,000nm). The OTG goggle with light grey, coated filters can be worn over average large correction glasses. The changeable click frame with an aired foam (A14AIRED1000) makes the goggles particularly comfortable to wear and prevents fogging of the laser protection filters. A clear view is guaranteed even with a long wearing period. The shipment includes a metal box which can also be used as a storage box





Product Specifications

CoatingInterference Coating (PVD)
CushionNo cushion
FilterT1K04
Filter colourLight grey
Filter curvatureBase curve 6
Filter materialCoated glass
Filter technologyAbsorption filter, Reflection filter
Filter thicknessca. 4mm
FrameR02
Frame typeSpectacle
PropertiesAdjustable temples, M-protection rating, Neutral glass lamination
Protection Class / NormEN 207 full protection
Protection rangeCoated filter, Infrared, near infrared
VLT (approx.)77%
Visual brightnessVery good
Colour recognitionExcellent

Protection Levels

WAVELENGTH (NM)ODOPERATING MODE / TESTED PROTECTION LEVEL
1030 – 1100(OD9+)D LB7 + IM LB9 + R LB8
2000 – 2200(OD2+)DI LB2 + R LB1
5400 – 5400(OD4+)D LB3 + I LB4Y + R LB2
9000 – 11000(OD4+)D LB3 + I LB4Y + R LB2
